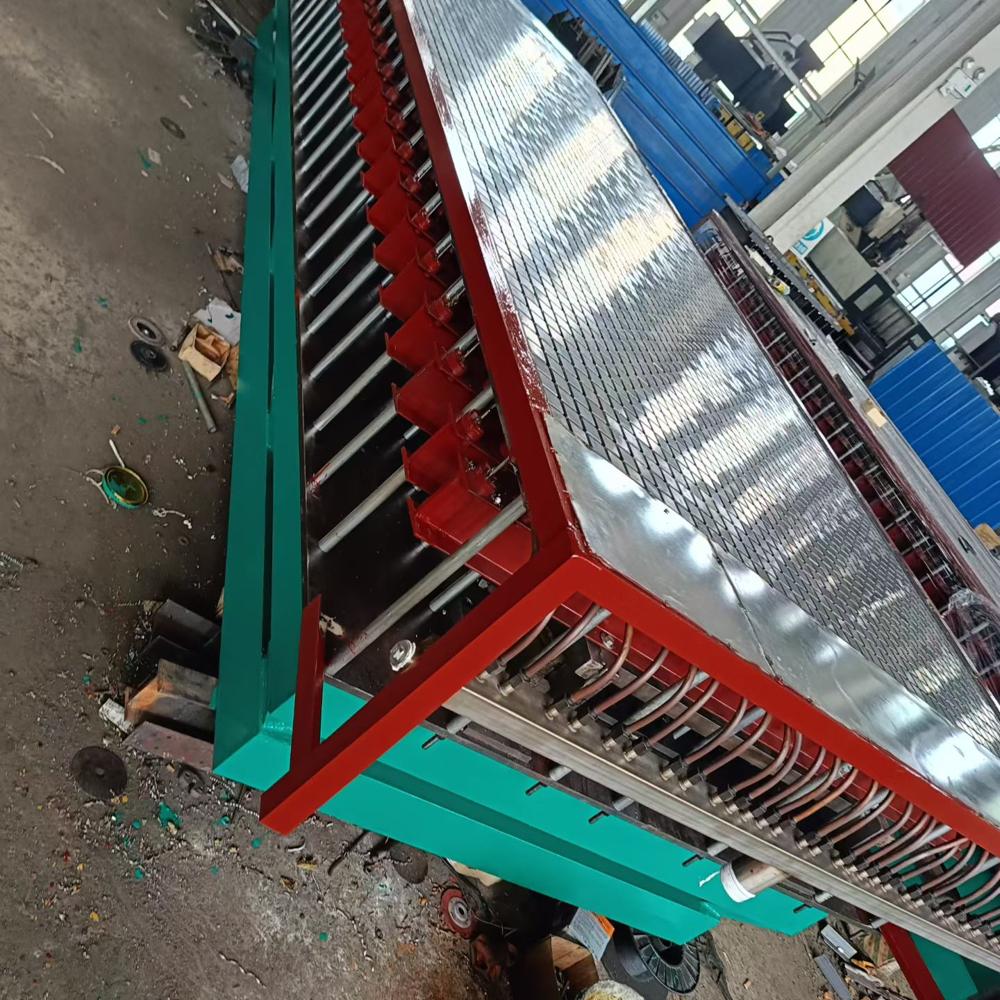

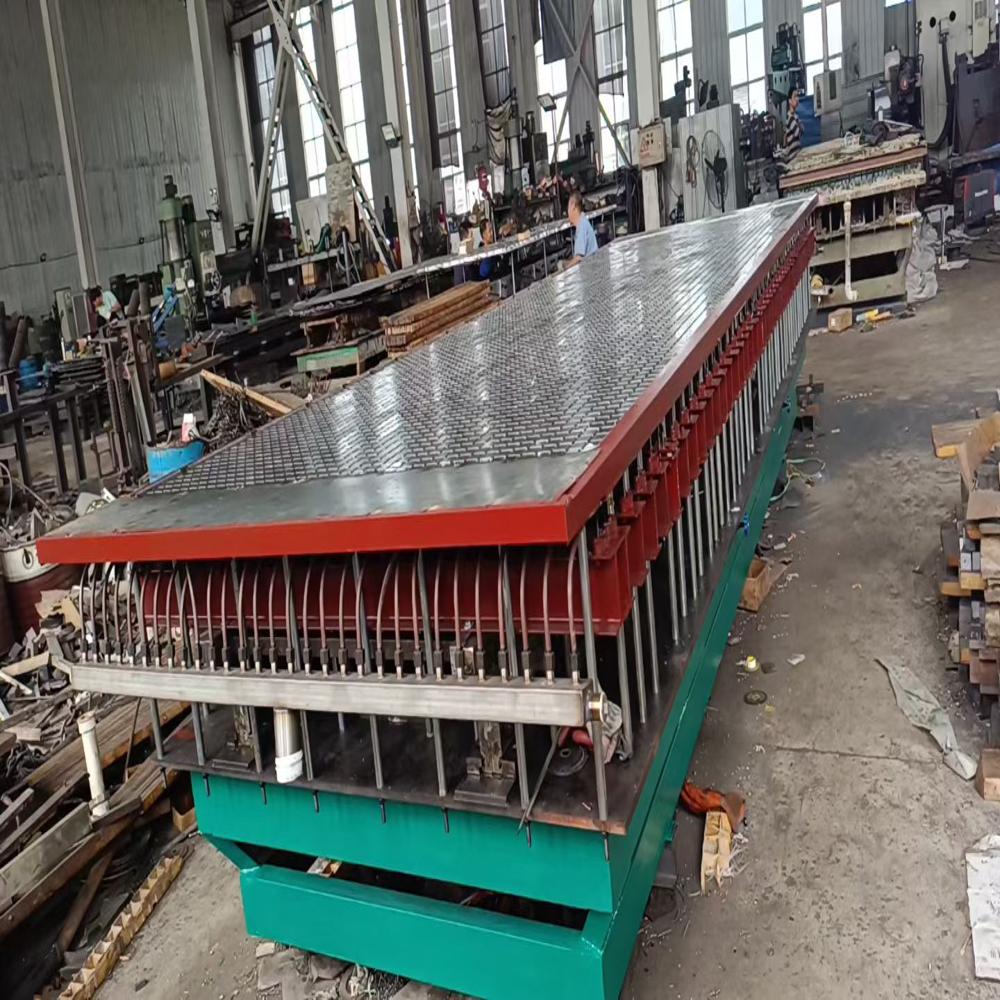

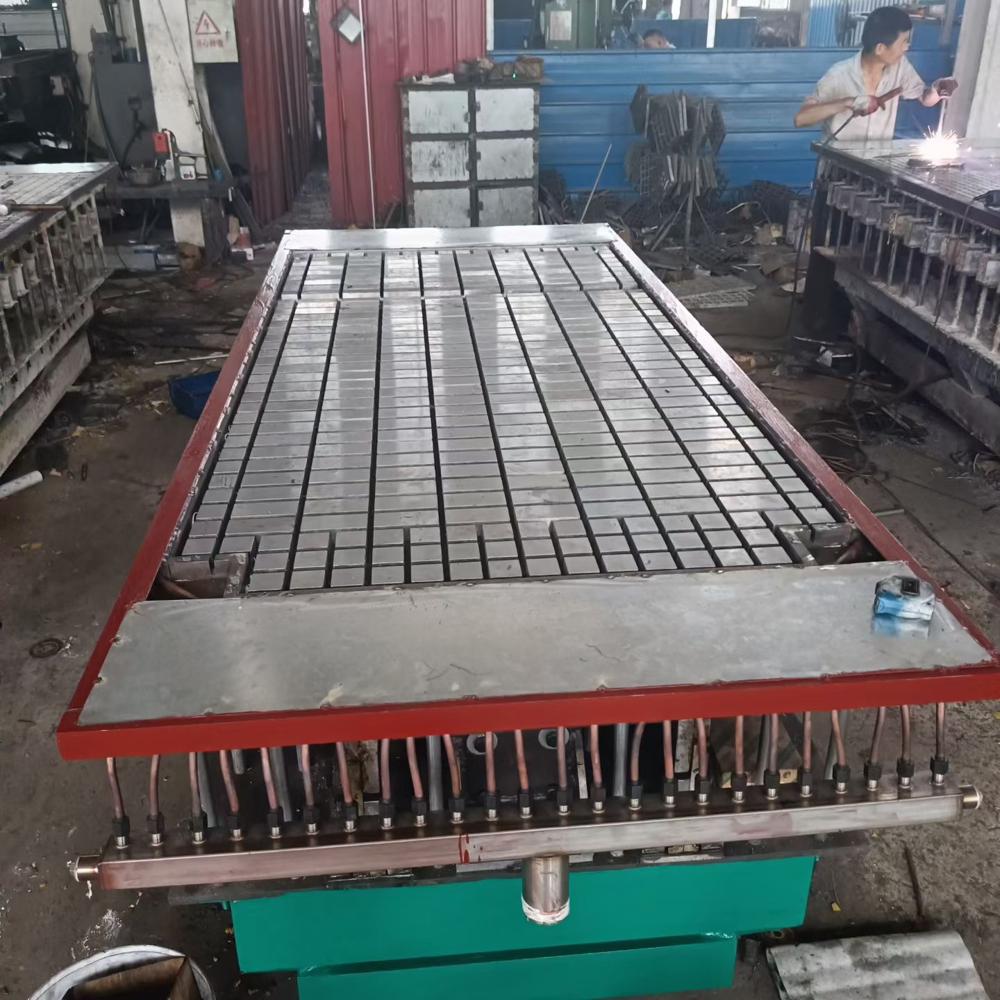

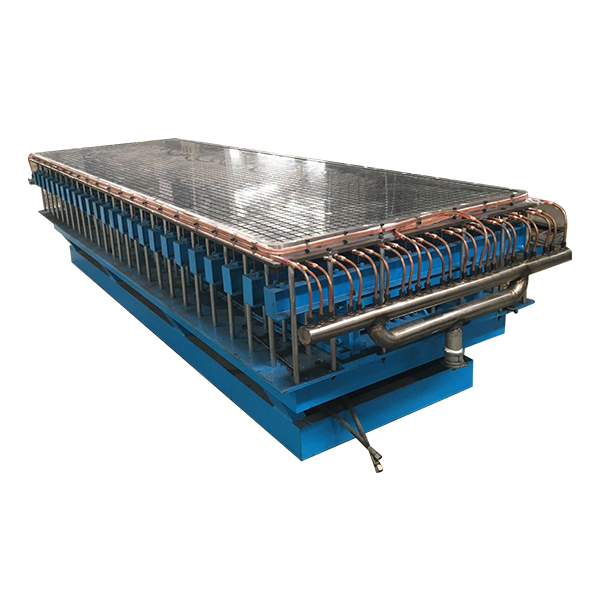

Send InquiryFRP Molded Grating Machine
FRP Molded Grating Machine Specification
- Voltage
- 380 V / 415 V
- Frame Type
- H-Frame
- Machine Type
- Hydraulic Molding Machine
- Features
- High Efficiency, Low Maintenance, Robust Frame, Fast Cycle Time
- Production Capacity
- 120200 m/Day
- Plastic Processed
- FRP (Fiberglass Reinforced Plastic)
- Cooling System
- Water Cooling
- Power Rating
- 15 kW
- Drive
- Hydraulic
- Model No
- FMG-2200H
- Motor Power
- 11 kW
- Control System
- PLC Controlled
- Noise Level
- 75 dB
- Operating Temperature
- 5C 40C
- Connectivity Options
- Ethernet, USB
- Accuracy
- 0.01 mm
- Frequency
- 50/60 Hz
- Lubricating System
- Automatic Lubrication
- Product Type
- FRP Molded Grating Machine
- Technology
- Hydraulic Molding
- Power Source
- Electric
- Operating Type
- Semi-Automatic
- Power
- 15 kW
- Pressure
- Hydraulic, Adjustable upto 150 Tons
- Surface Treatment
- Paint Coated
- Dimension (L*W*H)
- 5200 mm x 1800 mm x 2800 mm
- Weight (kg)
- 6500 kg
- Color
- Blue / Custom
- Usage & Applications
- Manufacturing Molded FRP Grating Panels
- Oil Tank Capacity
- 400 Liters
- Number of Molds
- 1 set (customizable)
- Hydraulic Cylinder Diameter
- 320 mm
- Material Feeding Method
- Manual/Automatic options
- Display
- LCD Touchscreen
- Cycle Time
- 7-8 minutes per grating
- Operator Safety Guard
- Provided
- Max Panel Size
- 1220 mm x 3660 mm
- Hydraulic Oil Type
- 68# anti-wear hydraulic oil
- Compressor Requirement
- 8 bar (for auxiliary functions)
- Emergency Stop Function
- Integrated
FRP Molded Grating Machine Trade Information
- Minimum Order Quantity
- 3 Sets
- FOB Port
- Henan
- Payment Terms
- Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union, Paypal, Letter of Credit at Sight (Sight L/C), Cheque
- Supply Ability
- 5 Sets Per Month
- Delivery Time
- 20-25 Days
- Main Export Market(s)
- Eastern Europe, Western Europe, Middle East, North America, Central America, South America, Asia
- Main Domestic Market
- All India
About FRP Molded Grating Machine
Owing to the expertise of our professionals, we are able to provide our valuable clients a wide range ofFRP Molded Grating Machine. This is used to produce fiber glass grating sheet. It use hydraulic lift principle, mold size have no tolerance, heat quickly, no vacillating phenomenon. This molded grating machine is manufactured and designed by our skilled professionals using premium quality components and the latest technology. Clients can avail thisFRP Molded Grating Machine from us in different specifications at rock bottom rates.
Advanced Hydraulic Molding Technology
The FMG-2200H utilizes cutting-edge hydraulic molding technology, providing consistent quality and superior strength for each molded FRP grating panel. Its powerful 320 mm hydraulic cylinder, high-capacity oil tank, and water cooling system ensure stable operations and a Fast cycle time, contributing to high productivity and low operational costs.
User-Friendly and Safe Operation
Equipped with an intuitive LCD touchscreen and PLC-controlled system, the machine ensures precision and ease of use. The integrated emergency stop and safety guards protect operators during production. Its semi-automatic mode supports both manual and automatic feeding, adapting to diverse manufacturing workflows.
Versatile and Customizable Design
Suitable for various industrial sectors, this machines mold setup is customizable to match specific application needs. Its sturdy paint-coated frame, automatic lubrication, and compatibility with Ethernet and USB connectivity options make it suitable for modern, high-volume production environments.
FAQs of FRP Molded Grating Machine:
Q: How does the FRP Molded Grating Machine operate?
A: The machine uses hydraulic molding technology to press and form fiberglass-reinforced plastic (FRP) material into grating panels. Operators can select between manual or automatic material feeding, initiate the cycle via LCD touchscreen, and monitor the process under PLC control for high accuracy.Q: What are the main benefits of using this machine for FRP grating production?
A: Primary benefits include high production efficiency (120200 m/day), fast cycle times (78 minutes per grating), robust build quality, and enhanced operator safety with integrated guards and emergency stop. Low maintenance, precise output, and customizable molds make it suitable for varied industrial needs.Q: When should I choose manual vs. automatic material feeding options?
A: Manual feeding is ideal for smaller batches or varied production requirements, while automatic feeding increases efficiency and consistency in larger-scale operations. You can switch between methods depending on your workflow demands.Q: Where can this FRP Grating Machine be installed and used?
A: The machine is suitable for factories, industrial plants, and production units focused on manufacturing FRP grating panels for applications such as walkways, platforms, flooring, and chemical-resistant environments. Electrical supply of 380 V or 415 V and a compatible compressor for auxiliary tasks are required.Q: What is the production process for making FRP grating panels with this machine?
A: The process involves feeding the FRP material (manually or automatically), activating the hydraulic molding cycle through the touchscreen, and the machine forming the panel under adjustable pressure up to 150 tons. Cooling and lubrication systems maintain process stability for precise, high-quality gratings.Q: What maintenance is required for the machine?
A: Routine maintenance includes checking and refilling 68# anti-wear hydraulic oil, ensuring water cooling operates efficiently, lubricating moving components via the automatic system, and regular inspection of hydraulic and electrical systems to uphold efficiency and longevity.Tell us about your requirement
